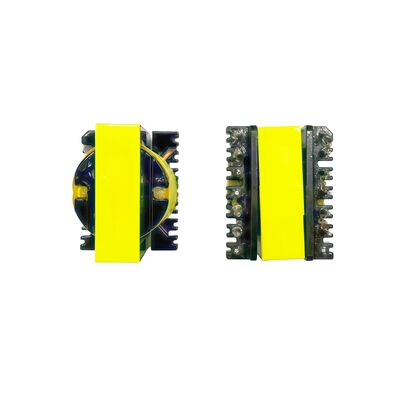

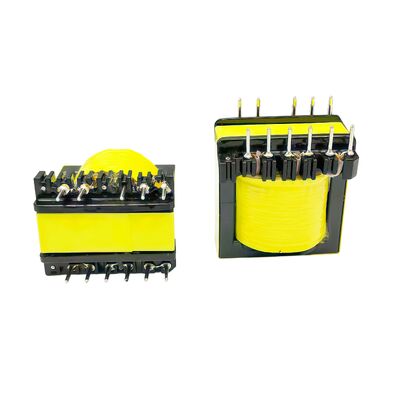

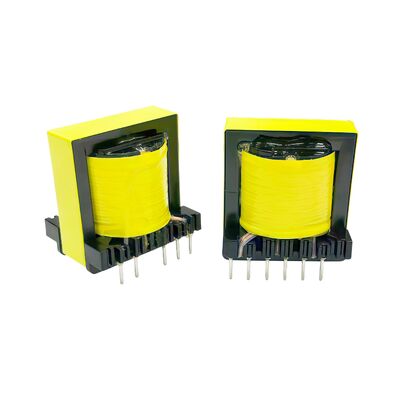

ETD34 Vertical High-frequency Transformer
High-performance switching power transformer with excellent electrical isolation characteristics for demanding industrial applications.
Product Overview
The ETD34 vertical high-frequency switching power transformer features superior electrical isolation with primary and secondary windings designed with precise insulation layers and physical spacing. Capable of withstanding voltage tests from 3000VAC to 4000VAC, it effectively prevents high-voltage breakdown while protecting operators from electric shock hazards.
Key Functions
  • Voltage Conversion and Power Transmission: Utilizes high-frequency magnetic core coupling for efficient energy transfer between primary and secondary coils, converting input DC voltage into required output voltages.
  • Electrical Isolation and Safety Protection: Provides physical and electrical isolation between primary (high voltage) and secondary (low voltage) sides, ensuring user safety and cutting off common mode noise propagation paths.
  • Energy Storage and Regulation: Functions as both transformer and energy storage inductor in flyback topologies, storing magnetic energy during conduction and releasing to secondary load during switching tube off periods.
Performance Characteristics
Feature Category Performance Characteristic Typical Value / Description
Electrical Performance High Operating Frequency 20 kHz to 500 kHz operation for high power density and reduced component size
Electrical Performance Conversion Efficiency ETD core shape reduces copper and core losses, achieving >85%-90% efficiency
Electrical Performance Power Handling Range 15W to 150W+ depending on circuit topology (Flyback, Forward, LLC)
Safety & Isolation High Withstand Voltage 3000VAC to 4000VAC primary to secondary isolation rating
Safety & Isolation Insulation Grade Meets UL, CE standards with reinforced insulation layers
Magnetic & Thermal Low Core Loss Ferrite materials (PC40, PC44) minimize hysteresis and eddy current losses
Magnetic & Thermal Low Leakage Inductance Bobbin structure and winding techniques control leakage inductance
Magnetic & Thermal Operating Temperature Range -40°C to +125°C stable operation in harsh environments
Mechanical Vertical Mounting Saves PCB space and facilitates better heat dissipation
Mechanical Magnetic Shielding Closed-core ETD design reduces Electro-Magnetic Interference (EMI)
